How to calibrate PT1000: A practical step-by-step guide

Learn how to calibrate PT1000 RTD sensors with a traceable reference, stable temperatures, and proper data handling. This guide covers equipment, methods, and best practices for accurate resistance-temperature calibration and reliable results.

Calibrate Point
Calibrate Point Team
·5 min read
Quick AnswerSteps

According to Calibrate Point, calibrating a PT1000 RTD begins with a stable reference and careful data capture. The goal is to determine resistance at known temperatures (0°C and 100°C at one atmosphere) and apply the fixed-point method to derive offsets and slope corrections. Use a precision temperature bath, a calibrated reference sensor, and a high-quality RTD meter to record multiple readings for each point.

PT1000 basics and calibration aims

If you are reading this, you likely want to perform a reliable calibration of a PT1000 temperature sensor. The PT1000 is a platinum-based resistance temperature detector (RTD) that provides a predictable change in resistance with temperature. In practice, calibration aligns the sensor’s resistance with known reference points so that its temperature readings are accurate across the operating range. As you work through how to calibrate pt1000, you’ll notice that precision and traceability are the two pillars of a credible calibration. According to Calibrate Point, the process hinges on stable reference temperatures, careful data collection, and an explicit uncertainty budget. The goal is not only to adjust an instrument but to quantify its confidence in measurements. You’ll want to minimize drift due to self-heating, lead resistance, and thermal gradients, while ensuring the test environment remains as close to the nominal reference as possible. In the sections that follow, we will cover the theoretical basis, practical setup, measurement strategy, and documentation practices that yield defensible results.

Beyond the practical steps, remember that calibration is as much about data quality as it is about the mathematics. A PT1000’s resistance at 0°C and at a higher reference temperature serves as the anchor points for the calibration curve. When you report results, you should present the residuals, the standard uncertainty, and any assumptions used in the analysis. The Calibrate Point team emphasizes that clarity in reporting builds trust with users of calibrated sensors and helps ensure traceability to national standards.

In the context of this guide, the primary objective is to deliver a documented, repeatable method for calibrating PT1000 sensors that technicians and engineers can reproduce in a lab or field environment. The approach outlined here is consistent with commonly accepted RTD calibration practices and is suitable for use in quality-critical applications where accuracy matters.

At its core, calibrating pt1000 means establishing a precise relationship between resistance and temperature. The procedure typically relies on fixed-point references, thermal baths, and careful data handling to produce a robust calibration curve that your measurement system can apply reliably.

The Calibrate Point analysis shows that a disciplined approach—stabilizing at well-defined temperatures, collecting multiple readings, and accounting for uncertainties—yields the most trustworthy results. The emphasis on traceability ensures your calibration stands up to internal audits and external verification.

note”:null}

Establishing a traceable reference and test setup

A successful PT1000 calibration starts with selecting a traceable reference standard and a controlled test environment. The reference should be a high-quality RTD or a calibrated resistance source that is traceable to a recognized standard, preferably with documented uncertainty. The test setup should minimize thermal gradients along the sensor leads and reduce contact resistance. A four-wire connection is strongly recommended for the PT1000 under test because it cancels the effect of lead resistance on the measurement. It’s also essential to verify the reference point locations: place the PT1000’s sensing element at the same depth or immersion as the reference sensor to ensure both sensors experience the same temperature.

Create a stable calibration bench that can accommodate ice-water baths for 0°C and a boil-water (or steam) setup for near-100°C, bearing in mind altitude effects on boiling temperature. When you prepare the equipment, check that all cables and connectors are clean, dry, and well labeled. A clean setup reduces contact resistance and measurement noise, which improves the repeatability of your readings. This stage is about establishing the basis for credible data: traceability, repeatability, and environmental control.

In practice, document the exact reference, its certificate, and the calibration environment. The Calibrate Point team recommends that you record ambient temperature, bath temperature, and any potential heat sources nearby. You should also verify that the measurement instrument and data logger are calibrated and synchronized with the reference to avoid time offsets between readings. By setting up a robust reference framework, you’ll reduce the chances of bias infiltrating your PT1000 calibration results.

If you operate in a regulated environment, ensure your setup complies with relevant standards such as ISO/IEC 17025. The goal is to build a defensible, auditable calibration record that supports ongoing quality control and future re-calibration cycles.

This phase lays the groundwork for accurate data collection and analysis, ensuring your PT1000 calibration is anchored by a known, traceable reference and a sound measurement chain.

note”:null}

Temperature points, stability, and measurement strategy

Calibration relies on stable, well-defined temperatures. The typical practice is to use two fixed points: 0°C (ice bath) and approximately 100°C (boiling water at one atmosphere). If your environment’s barometric pressure shifts the boiling point, adjust accordingly and document the exact temperature. It is also common to include an intermediate point, such as room temperature (20–25°C), to verify linearity in the calibration curve.

Stability is key. Allow the bath to reach the target temperature and maintain it long enough for the sensor to equilibrate. Depending on the system, stabilization times can range from a few minutes to tens of minutes. During each stabilization, take multiple resistance readings, ideally using a four-wire configuration to eliminate lead resistance. Avoid rapid temperature changes that cause thermal lag or sensor self-heating, which can bias the results.

When collecting data, ensure you record the time stamp, ambient conditions, and any drift observed during the measurement interval. The data collection plan should specify how many readings to collect at each temperature and how to handle outliers. A simple rule is to discard readings that deviate more than a small tolerance (for example, a few milliohms) from the moving average unless a physical reason is evident.

Consistency in data collection is as important as the measurements themselves. The reference sensor should be measured with the same timing and method as the PT1000 to minimize systematic differences. Document any environmental changes during the session, such as drafts, fan operation, or room temperature fluctuations, which could influence the sensor’s response. A well-documented and stable measurement strategy supports reliable calibration results and a transparent uncertainty budget.

note”:null}

Data processing, coefficients, and uncertainty budgeting

Processing PT1000 data begins with translating resistance readings to temperature via a standard RTD equation. The Callendar–Van Dusen model is commonly used for platinum RTDs and is applicable to PT1000 as well: R(T) = R0[1 + aT + bT^2] for 0°C ≤ T ≤ 850°C, where R0 is the resistance at 0°C, a ≈ 3.85×10^-3 °C^-1, and b ≈ -5.8×10^-7 °C^-2. For calibration, you determine R0 and the coefficients that best fit your reference data. In practice, you are solving for R0 and a (and possibly b) so that the PT1000’s measured resistance matches the reference across your chosen temperature points. The result is a calibrated map that your measurement device can apply to convert resistance to temperature with improved accuracy.

Two common approaches exist:

  • Fixed-point calibration: Use the two fixed temperatures (0°C and 100°C) and fit the curve to minimize the residuals at those points. This approach provides strong anchor points and is robust against small measurement noise.
  • Least-squares fit: Collect readings at multiple temperatures (including an intermediate point) and fit the coefficients to minimize overall error. This method yields a well-behaved curve across the range of interest but requires more data.

Uncertainty budgeting is a critical component of calibration reporting. For each temperature point, quantify the combined standard uncertainty from sensor drift, reference uncertainty, bath stability, and measurement repeatability. The final uncertainty should reflect the confidence in the temperature assigned to the sensor under test and should be documented alongside the corrected readings. Calibrate Point emphasizes maintaining a traceable uncertainty chain from the reference to the PT1000 under test, ensuring your results are defensible in audits or customer reviews.

Finally, validate the calibration by measuring a third, independent temperature point and comparing the result to the predicted value. If the error exceeds an acceptable threshold, review the data collection methods, verify the reference sensor integrity, and consider repeating the calibration with tighter environmental controls. This section links theory with practice, turning raw resistance data into a calibrated, traceable PT1000 sensor.

The combination of a sound model, robust data, and clear documentation yields calibration results that engineers can trust for critical processes.

note”:null}

Handling measurement uncertainties and error budgeting

The success of a PT1000 calibration hinges on understanding and controlling uncertainty. Start by listing potential error sources: lead resistance, self-heating from current in the sensor, temperature gradients, reference standard uncertainty, bath stability, and data acquisition noise. For each source, estimate its contribution to the overall uncertainty using simple propagation rules or an established method from your quality system. A practical approach is to perform repeat measurements at each temperature and compute the standard deviation to quantify repeatability.

Lead resistance is a common source of systematic error. Using four-wire, shielded connections minimizes this effect. Ensure consistent lead routing to avoid mixed contact resistances. Self-heating can bias resistance readings when the excitation current is too high. Use the lowest practical current, or apply a low-duty cycle to reduce heating while preserving measurement accuracy.

Thermal gradients can occur if the sensor is not uniformly immersed or if there are drafts near the bath. Fully submerge the sensing element and insulate the bath and test area. Document the ambient temperature and any heat sources that could affect the measurement. By carefully documenting these factors, you enable a more transparent uncertainty assessment and improved calibration credibility.

Finally, present a summarized uncertainty budget in the calibration report, including both type A (statistical) and type B (non-statistical) uncertainties. This budget should be traceable to the reference standard and the measurement system. A well-documented uncertainty analysis makes the calibration results immediately usable by engineers who rely on precise temperature measurements in control loops, diagnostics, and QA testing.

The goal is not to pretend perfect precision but to provide a defensible, transparent assessment of how confident you are in the calibrated PT1000 values. A robust uncertainty budget also makes future re-calibration more efficient, since you’ll know which sources contribute most to the overall error and where improvements will yield the biggest returns.

note”:null}

Practical examples, field considerations, and common pitfalls

In real-world settings, you’ll often calibrate PT1000 sensors in environments where you cannot rely on lab-grade baths. In such cases, using a portable, calibrated reference unit and a compact temperature bath can still deliver credible results if you follow strict procedures. For instance, in a production line setting, a two-point calibration (0°C and ambient or a slightly elevated point) with careful documentation can be sufficient for process control. However, expand your test range if your application covers high-precision measurements at multiple temperatures.

Common pitfalls include neglecting proper four-wire connections, failing to fully equilibrate the sensor, and using a reference sensor that has drifted since its last calibration. Another frequent issue is failure to account for altitude in boiling-water references — at higher elevations the boiling point is lower, which shifts the upper calibration point if not adjusted. Always verify the actual reference temperatures with a trusted thermometer and record the exact bath temperatures.

When working with PT1000, you may also encounter issues with nonlinearity at temperature extremes or with aging sensors showing drift over time. If you notice systematic bias at high temperatures but not at low ones, revisit the conditioning of the sensor and check for sensor damage or installation stresses. By analyzing the residuals and plotting the error across the calibration range, you can detect non-ideal behavior and decide whether a more complex model is warranted.

These practical scenarios illustrate how calibration remains an art as well as a science. By combining disciplined measurement, careful data analysis, and transparent reporting, you’ll deliver a PT1000 calibration that stands up to scrutiny in quality-focused environments.

Calibrate Point’s experience shows that the most reliable PT1000 calibrations balance robust measurement practice with thorough documentation, enabling repeatable results and clear traceability.

note”:null}

Documentation, reporting, and next steps

The final calibration report should present the corrected resistance values, the corresponding temperatures, and the calculated uncertainties for each point. Include a description of the equipment, the method used, and any deviations from the plan. Your report should also contain a clear statement of traceability to the reference standard, the date of calibration, and the names of personnel involved. It’s helpful to attach the reference certificate, bath stability plots, and raw data as appendices. When in doubt, err on the side of more detailed documentation—this reduces back-and-forth questions from auditors and customers.

For ongoing maintenance, establish a recalibration interval based on usage, environmental conditions, and observed drift. Keep a log of any changes to the test setup and any instrument replacements. A well-maintained calibration history helps you detect trends and plan proactive maintenance before sensor performance degrades. If you use the PT1000 in safety-critical or regulated contexts, ensure your organization’s SOPs reflect the calibration workflow described here.

In summary, calibrating a PT1000 requires a thoughtful combination of stable references, careful measurements, robust data processing, and meticulous documentation. The approach described here aligns with industry best practices, and the results should give you—and your customers—confidence in the accuracy of temperature readings. For ongoing improvements, consider periodic cross-checks with a secondary reference and a review of the uncertainty budget whenever you upgrade equipment or procedures.

The Calibrate Point team recommends maintaining a calibration schedule, tracking uncertainties, and updating documentation as part of your quality system to ensure continuous improvement and reliable temperature measurement over time.

Tools & Materials

  • PT1000 sensor under test(Ensure it is clean and undamaged; verify 4-wire compatibility.)
  • Traceable reference RTD or resistance standard(Certified and documented uncertainty; calibrate against a national standard.)
  • Precision temperature bath or ice-water bath setup(Stable at 0°C; use insulation to minimize drift.)
  • Boiling-water reference setup (at 1 atm)(Altitude-adjusted boiling point; measure actual temperature with a calibrated thermometer.)
  • Four-wire RTD meter or high-accuracy multimeter(Resolution better than 0.01 Ω preferred; ensure proper wiring.)
  • Calibration jig and lead wires(4-wire configuration; use shielded cables where possible.)
  • Data logger or PC for recording data(Helps organize and export results; optional but recommended.)
  • Safety gear (gloves, goggles)(Protect against hot baths and chemical exposure if using ice baths.)
  • Calibration certificates and documentation templates(Maintain traceability and reporting consistency.)

Steps

Estimated time: 2-3 hours

  1. 1

    Prepare workspace and verify equipment

    Clear the work area, insulate the bath, and verify that all instruments are calibrated and connected. Confirm that the PT1000 under test is clean and properly labeled for the session. Power down measurement instruments before connecting sensors to avoid electrical noise.

    Tip: Check that all connectors are dry and free of corrosion; this reduces contact resistance.
  2. 2

    Mount reference and test sensor in the fixture

    Place the traceable reference RTD and the PT1000 in the calibration jig using four-wire leads. Ensure both sensors are immersed consistently in the bath to minimize thermal gradients. Secure all cables to prevent movement during measurement.

    Tip: Use the same orientation and immersion depth for both sensors to ensure comparable thermal conditions.
  3. 3

    Stabilize the 0°C bath and record data

    Prepare the ice-water bath and allow it to stabilize at 0°C. Take multiple resistance readings from both sensors, then compute their average at this point. Note ambient conditions and bath stability in your log.

    Tip: Let the bath settle fully; rapid temperature shifts can bias the early readings.
  4. 4

    Stabilize the near-100°C bath and record data

    Bring the water to a stable temperature close to 100°C at one atmosphere. Again, capture several readings from both sensors and average them. Document the exact temperature of the bath using a calibrated thermometer.

    Tip: Altitude affects boiling point; adjust the target temperature accordingly and record the actual value.
  5. 5

    Capture a mid-range point for linearity check

    Measure resistance at a mid-range temperature (e.g., 25°C) to assess linearity. Use this additional point to refine the coefficient fit if you perform a least-squares calibration.

    Tip: Mid-range data helps detect nonlinearity and improves the model fit.
  6. 6

    Compute R0 and the RTD coefficients

    Using the collected data, solve for R0 and the coefficients a (and optionally b) in the Callendar–Van Dusen model. Apply a least-squares approach if you have multiple points. Check residuals to ensure the fit is reasonable across the range.

    Tip: Document the calculation method and include the equations used in the report.
  7. 7

    Apply calibration to measurement instrument

    Update the instrument’s calibration constants using the derived R0 and a (and b). Validate by re-measuring at a third point and comparing to the predicted value. Save the updated calibration data in the instrument and log.

    Tip: Recheck your wiring to ensure no changes occurred during updating.
  8. 8

    Document results and close the session

    Prepare the calibration report with all readings, uncertainties, environmental conditions, and method details. Attach certificates and raw data as appendices. Sign off with the responsible technician’s name and date.

    Tip: Keep the logbook updated for future audits and re-calibration planning.
Pro Tip: Use a four-wire connection to eliminate lead resistance from the measurement.
Warning: Never handle hot baths without proper PPE; keep liquids away from sensing leads to prevent thermal shock.
Note: Document all reference uncertainties and ensure traceability to standards.
Pro Tip: Validate the reference sensor before starting to ensure the reference is stable and accurate.

Questions & Answers

What is PT1000 and why calibrate it?

The PT1000 is a platinum RTD that has a resistance of 1000 Ω at 0°C. Calibrating it ensures its resistance-to-temperature relationship is accurate, traceable, and consistent across measurements. Calibration reduces drift and improves reliability in temperature-critical applications.

PT1000 is a platinum RTD with 1000 ohms at 0°C. Calibrating it keeps temperature readings accurate and traceable.

What temperature points are best for calibration?

Traditionally, 0°C and close to 100°C (at 1 atmosphere) are used as fixed points. Including an intermediate point, like room temperature, helps verify linearity and improves the calibration model.

Use 0°C and near 100°C as fixed points, plus an intermediate point to check linearity.

Is a four-wire setup necessary?

A four-wire connection is strongly recommended because it cancels the resistance of the leads, yielding a more accurate measurement of the sensor itself. Two wires carry current, while the other two measure the voltage drop.

Yes. Four-wire connections minimize lead resistance and improve accuracy.

How should I report the calibration results?

Include the corrected temperatures, the corresponding resistances, the coefficients used, and the combined standard uncertainty. Also document the reference standard and the bath conditions to ensure traceability.

Report corrected temperatures, uncertainties, and the reference details for traceability.

Can I calibrate PT1000 in the field?

Field calibration is possible but should be done with controlled references and appropriate safety measures. If precise traceability is required, consider bringing the reference standards to the field or performing the work in a lab.

Field calibration is possible with proper references and safety; for traceability, a lab is preferred.

Watch Video

Key Takeaways

  • Anchor calibrations to traceable fixed points
  • Use four-wire connections to minimize lead resistance
  • Record environmental conditions and uncertainties for credible reports
  • Document all steps for auditability and repeatability
  • Validate results with an independent point to confirm linearity

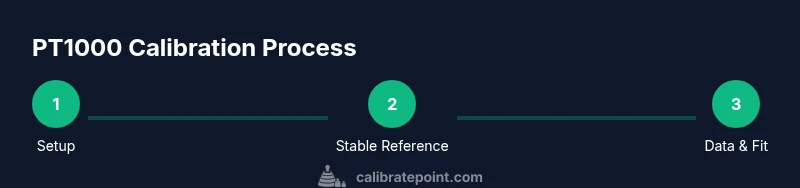

Infographic showing a three-step PT1000 calibration process from setup to data fitting
Three-step PT1000 calibration process: setup, stabilize references, and fit data
